Qian Barcode Scanner Tiaoma, Automatic Laser

QLLA1701

Barcode Scanner Tiaoma Automatic Laser

(0) Comments

Specification

Interface

Supports USB Interface Keyboard HID/USB VCP.

Laser

Optical Laser Features: 650 nm visible laser diode.

Scanning Angle

Tilt Angle for Scanning: ±35°, Skew Angle: ±75°, Reading Angle: ±40°.

Decoding

Decoding compatibility: EAN13, EAN8, UPC A, UPC E, CODABAR (NW-7), CODE 39, CODE 93, INTERLEAVED 2 OF 5, STANDARD 2 OF 5, MATRIX 2 OF 5, CODE 128, EAN/UCC 128, CODE 11, CHINESE POST. Decoding speed: 100±20 scans/second.

Resolution

Minimum Resolution: 0.127 mm / 5 mil (PCS 0.9).

OUT STOCK

EASY SCANNING

With the Tiaoma QLLA1701 a whole world of 1D barcode scanning possibilities opens up for you. Simply set-it up for wireless use and start scanning away at ultra-fast scan speeds and the possibility to set it up in different, faster scanning modes without the need to pull the trigger every time, as well as many other features that will be sure to make your work life easier. Scanning has never been this easy before!

Features

The Qian Tiaoma QLLA1701 Barcode Scanner is completely compatible with a multitude of 1D Barcodes, including UPC / EAN, Code 128, among others.

Ease-of-Use

Activate its continuous scan mode for simple, easy to use hands-free auto-scanning that won't require any trigger presses or follow the included instructions to set up hands-free scanning operation.

Plug And Play

No need to install any software or app, simply plug and use away. Its wireless range goes up to 196ft in wide, unobstructed spaces.

Practical

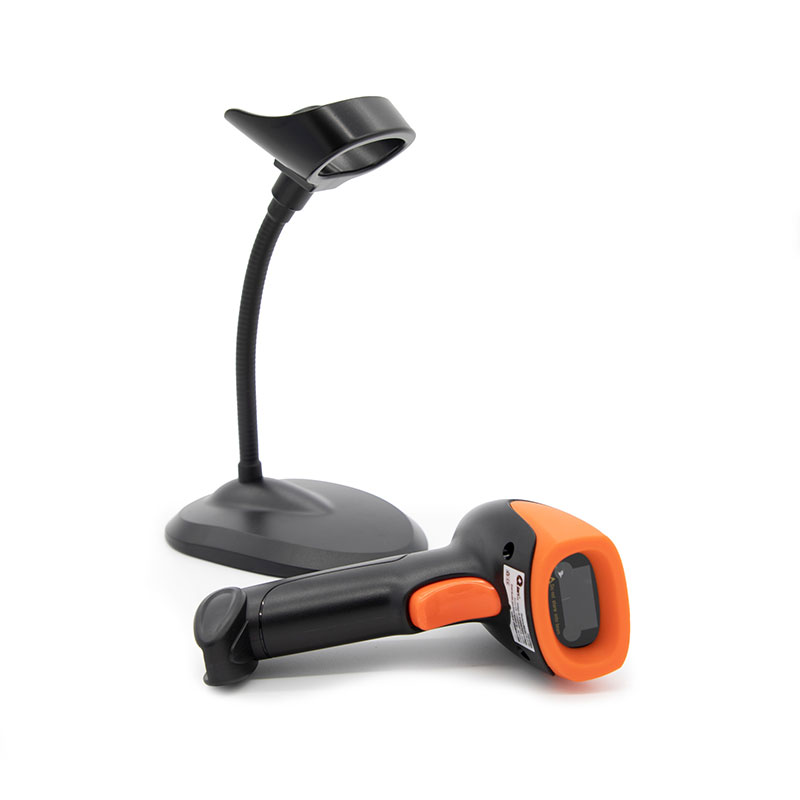

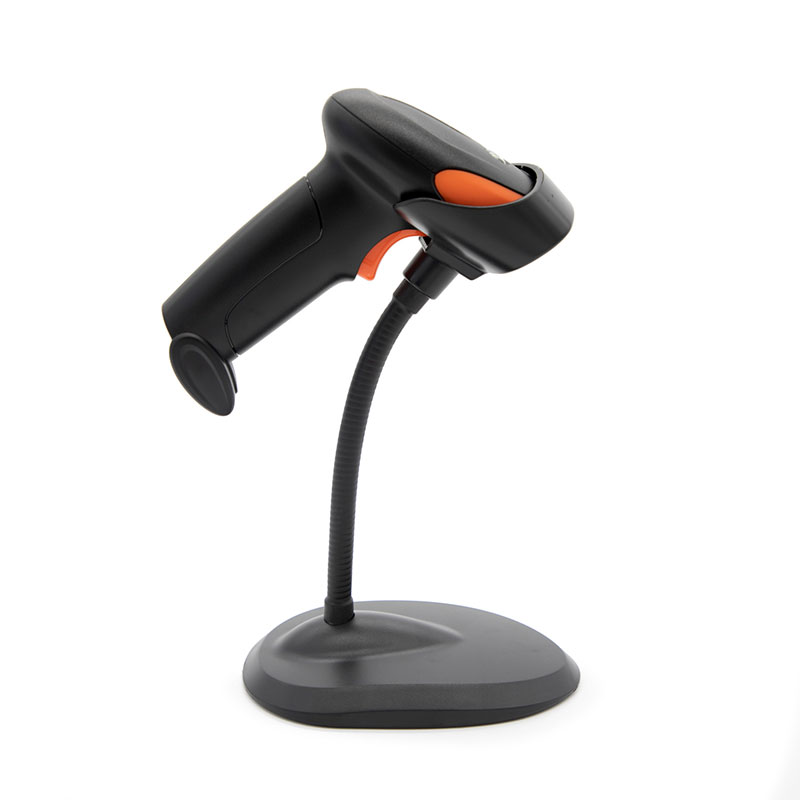

Includes a stand to hold the scanner while not in use.

Interface	USB HID KEYBOARD / USB VCP
Voltage Requirement	DC 5V ± 10%
Current consumption	Max: 120mA
Light source	650nm Visible laser diode
Scan rate	100 ± 20 (scans/second)
Decode angle	Pitch angle ± 35°; Skew angle ± 75°; Tilt angle ± 40°
Min resolution	SR: 0.127mm/5mil(PCS 0.9)
Min PCS value	>25%UPC/EAN 13(13mil)
Mechanical Shock	1.5m drop onto concrete surface
Temperature	-20° to 65° C / -4° to 149° F (operation) -30° to 70° C / -22° to 158° F (storage)
Relative humidity	5 - 90% (operation), 5 - 90% (storage)
Ambient Light	up to 80,000 lx
Decode Capability	1D: EAN13, EAN8, UPC A, UPC E,BARCODE (NW-7), CODE 39, CODE 93,INTERLEAVED 2OF5, STANDARD 2OF5, MATRIX 2OF5, CODE 128, EAN / UCC 128, CODE 11, CHINESE POST
Top 5 Product Features	1. With stand 2. Auto trigger/auto reading function 3. Support multiple languages
Dimensions	67mm x 97mm x 165mm (LWH)
Weight	67mm x 97mm x 165mm (LWH)
