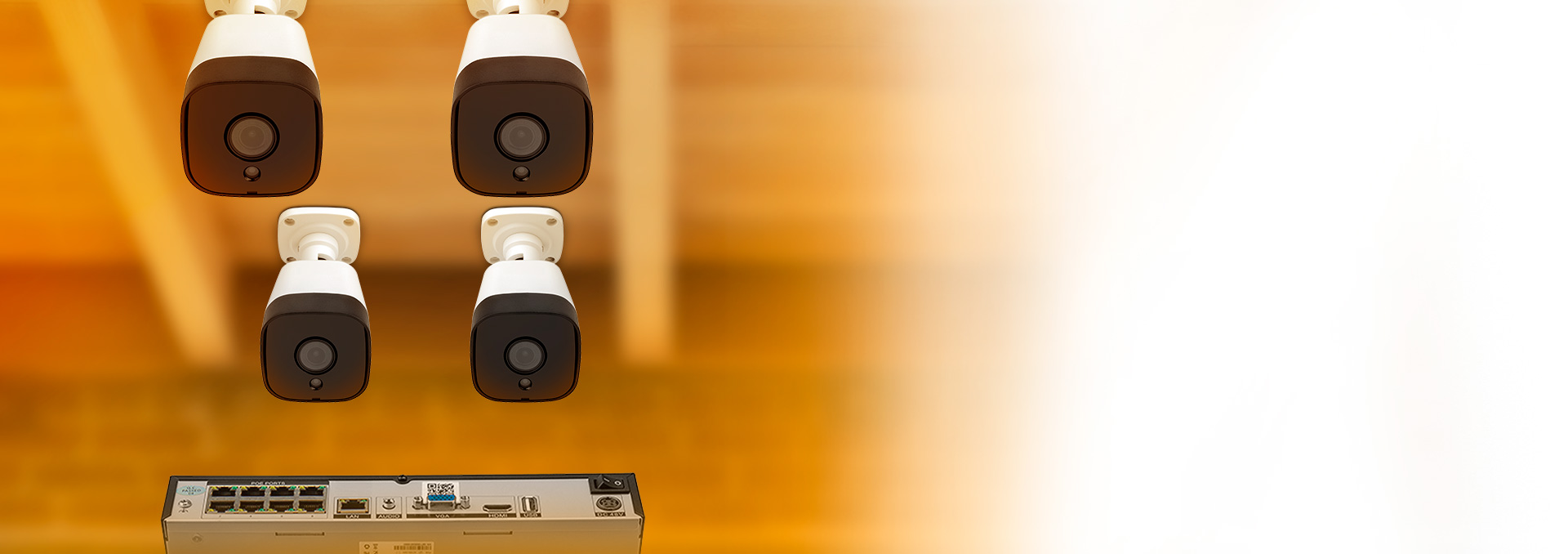

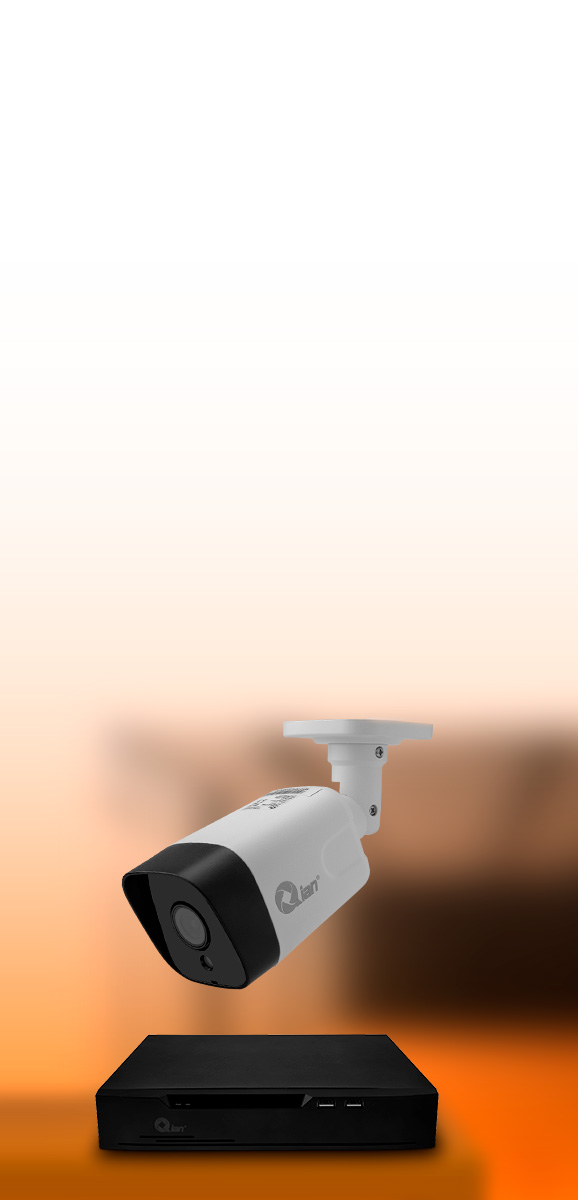

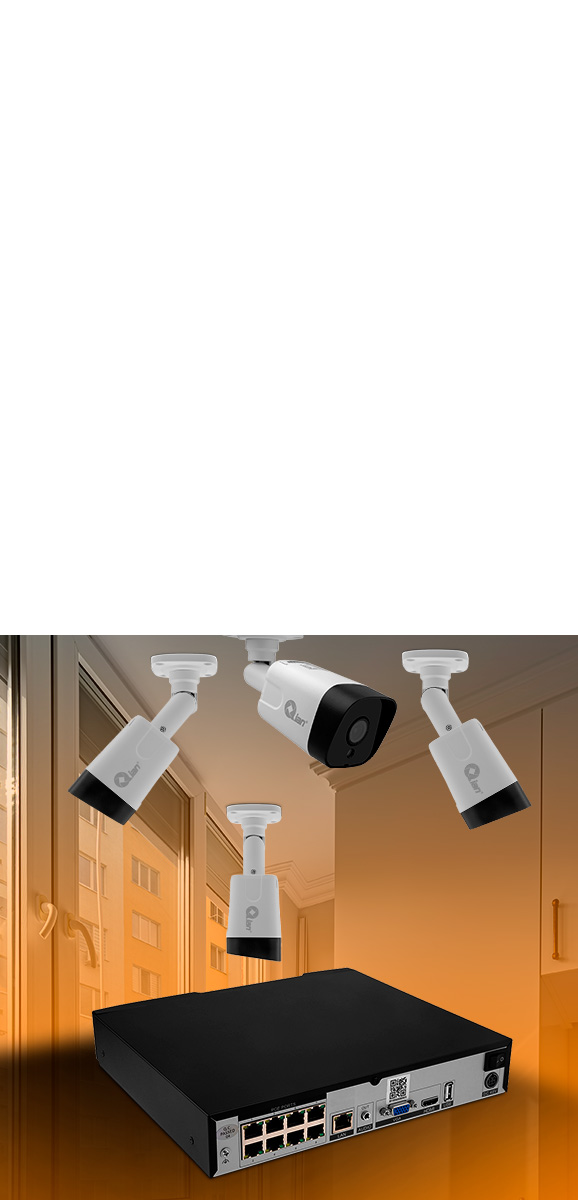

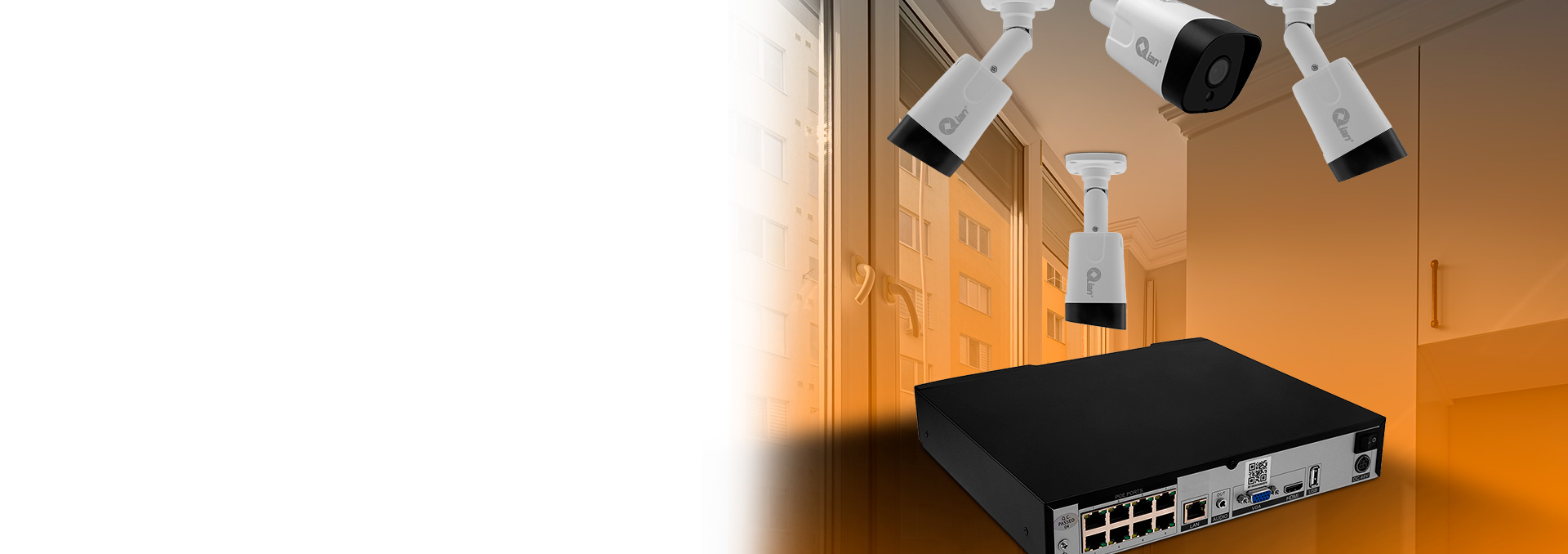

Qian 8ch NVR Kit with 5MP POE Bullet Camera 4PCS with 1T HDD
Create a Robust Surveillance Network
The Qian NVR Kit supports up to 8-channel IP security camera inputs with Power over Ethernet (PoE) capabilities, ensuring easy installation and efficient power management. With its flexible capability, you can connect a variety of cameras to create a comprehensive surveillance network tailored to your specific requirements.
See Every Detail with Unmatched Clarity
Experience amazing video quality with up to 1 channel at 8MP or 4 channels at 1080P decoding capability. The simultaneous VGA/HDMI video output delivers crisp, clear images, and the HDMI port supports a maximum resolution of 4K. Enjoy immersive monitoring experiences with exceptional detail and clarity!

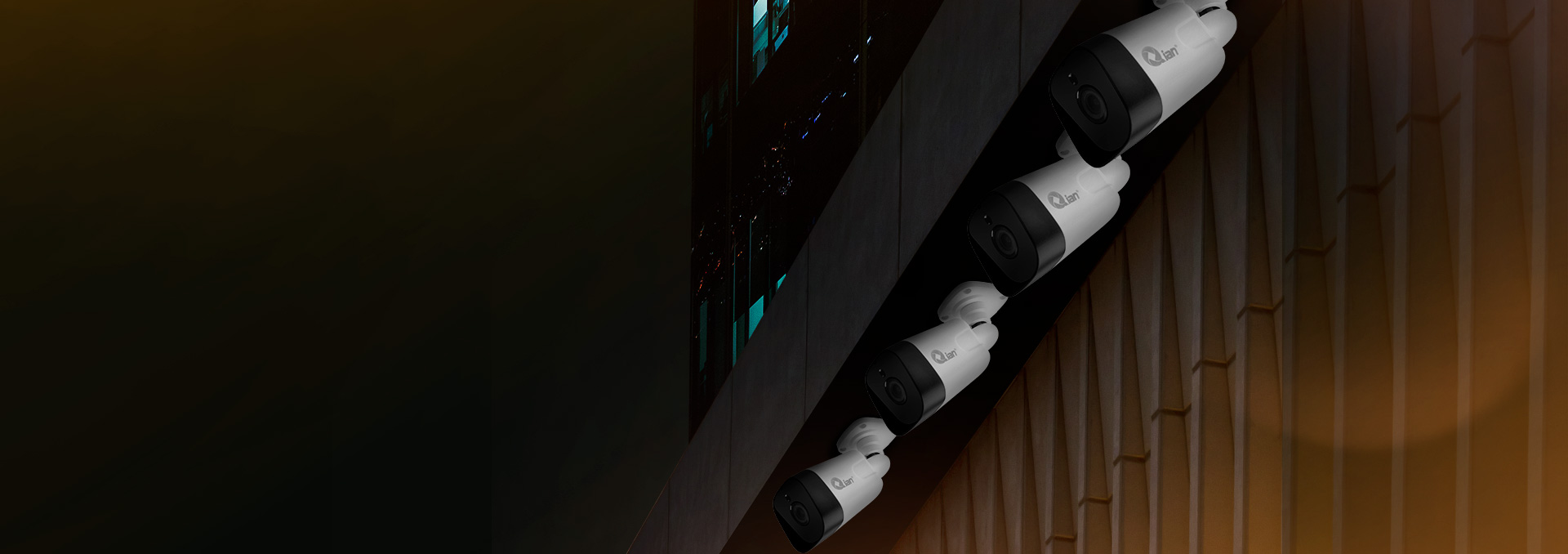

Equipped with Four 5MP IP Security Cameras
- DWDR (Digital Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- HLC (High Beam Compensation)
- BLC (Backlight Compensation)
- Defogging technology
- 5MP
- Night vision
- Range of up to 30 meters.

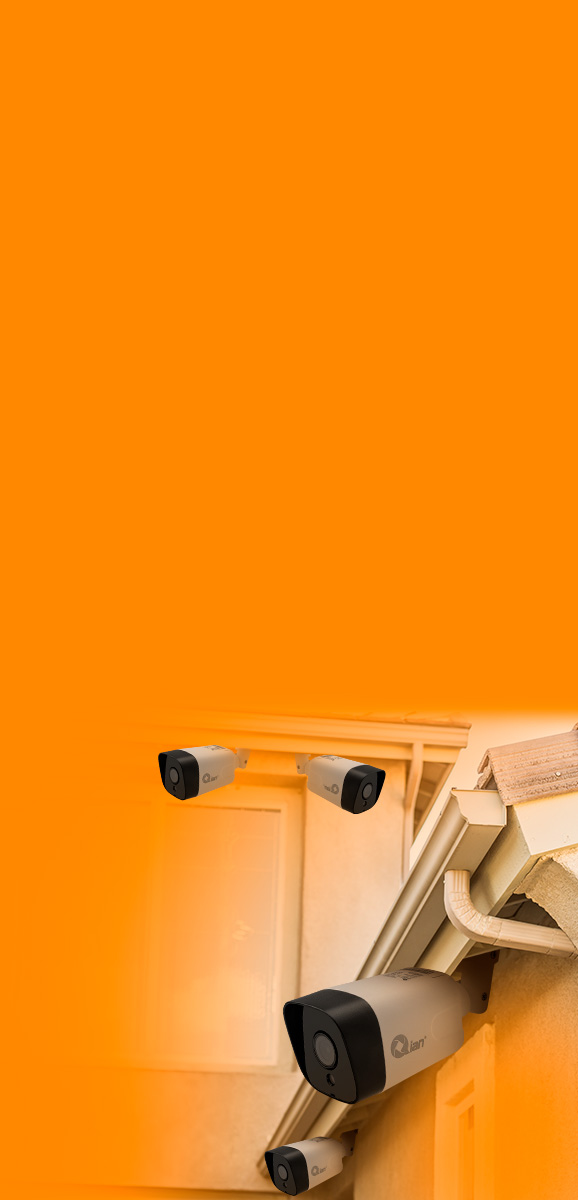

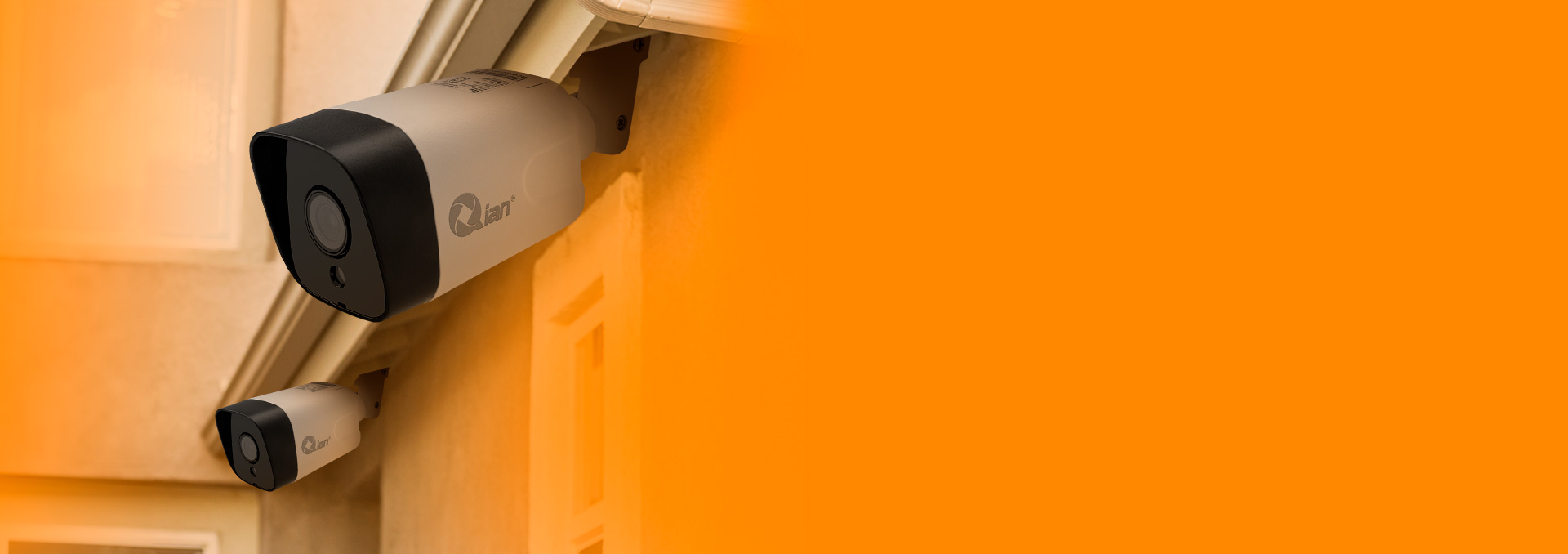

Whether you are monitoring your home, office, store or factory, Qian NVR Equipment offers unparalleled surveillance capabilities.

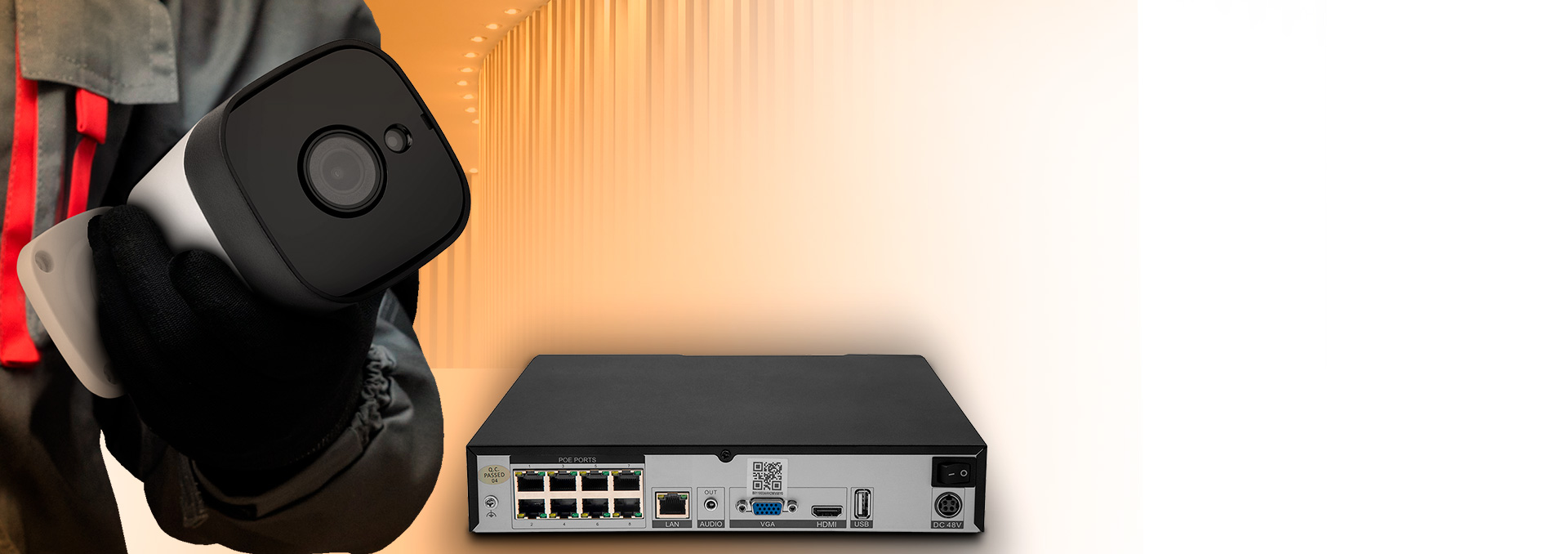

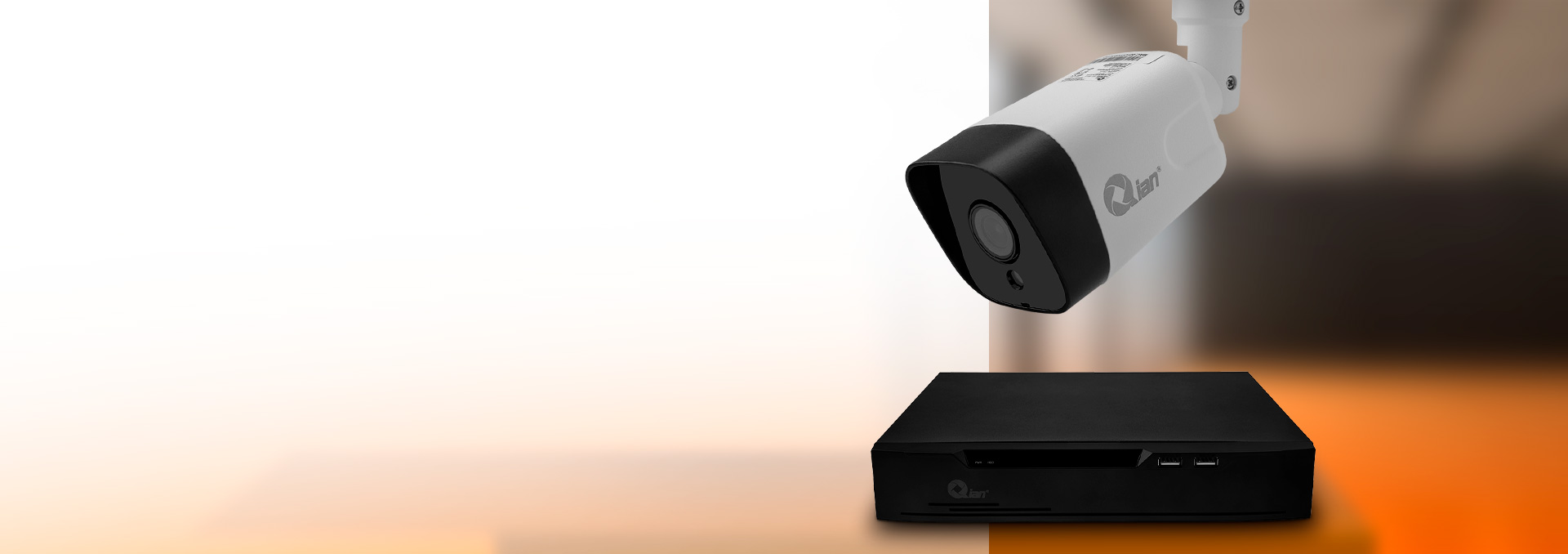

Simplified installation
With Power over Ethernet (PoE) support, the Qian NVR Kit eliminates the need for separate power cables for each IP camera. PoE technology enables both data transmission and power delivery over a single Ethernet cable, simplifying the installation process and reducing cable clutter.
Flexible display options
With VGA and HDMI outputs, the Qian NVR Kit offers flexibility in choosing display options. You can connect it to a variety of monitors or display devices, including computer monitors, televisions, or projectors, depending on specific requirements and available equipment.
Greater detail and clarity
A comprehensive surveillance solution designed to meet the security needs of homes, offices, stores and factories. The 5MP resolution of the 4 included IP cameras offers sharp and detailed images. This advanced kit combines cutting-edge features with easy-to-use functionality, providing reliable monitoring.
Smart Monitoring with Qian Vision
With the built-in Qian Vision intelligent monitoring software, you can easily manage and control your surveillance system. The intuitive interface allows easy access to live streams, playback recorded footage, configure settings, and customize alerts. In addition, you can download the application on iOS and Android to be aware of every detail.
| Video Input | IP Camera Input x 8 channels |
|---|---|
| Trigger Events | Motion Detection, Video Loss, IVS |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE |
| Max. User Access | 8 users (via Windows/ Android/ iOS devices) |
| Interoperability | ONVIF, SDK |
| Storage | HDD 1TB, (SATA interface x1, up to 8TB) |
| Network interface | RJ-45 (10/100 Mbps) self-adaptive Ethernet port x1 |
| Interface | POE: 8 Ports (IEEE 802.3af), 48W Audio Output x1 USB2.0 port x2 HDMI x1 VGA x1 |
| Camera type | IP Camera 5MP Bullet x 4pcs (Qian PN: QEC-IBUL5) |
| Camera Resolution | Max to 2560(H)×1920(V) |
| Support Features | Human Detection, Intrusion Detection, Rest Button, Scheduling, Event, Sync Playback, Search Mode (Time/Date), Alarm, Picture grid Backup Mode: USB Device, Network |
| Incoming Bandwidth | 40 Mbps |
| Management Software | NVR Management Software installed |
| Support APP | Inview Pro for smart phone/devices. |
| Input Power | NVR: DC48V/1.25A Camera: DC12V/POE (IEEE 802.3af) |
| Power Consumption | NVR: < 5W (without HDD) Camera: Max 5W |
| Working Temperature / Humidity | NVR: -10°C ~ 50°C (14°F ~ 122°F) / Less than 90% RH Camera: -25°C ~ 55°C (-13°F ~ 131°F ) / Less than 90% RH |
| Certifications | CE/FCC |
| Dimensions | NVR: 255 × 235.1 × 47.5 mm (10.04 × 9.26 × 1.87 inch) Camera: 181.9 × 66.26 × 66.17 mm (7.16 × 2.61 × 2.60 inch) |
| Net Weight | NVR: 1kg (2.2 lb) without HDD Camera: 0.35kg (0.77 lb)/pc |
| video compression code rate | H.264/ H.265/ H.265+(Smart Encode) |
| Outgoing Bandwidth | 40 Mbps |
| Video output | HDMI Output: 3840×2160, 1920×1080, 1280×1024, 1024×768 VGA Output: 1920×1080, 1280×1024, 1024×768 |
| Decoding Capacity | 1ch 8MP, 4ch 1080P, 8ch D1@30fps |
| Streaming Capability | Support dual stream |
| Multi-screen Display | 1/4/9 |
| Resolution | Recording resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, etc. |
| Recording Mode | Manual, Schedule (Regular, Continuous), Event |
