PM Series 1T3M, 1300W
Platinum Power for Peak Performance

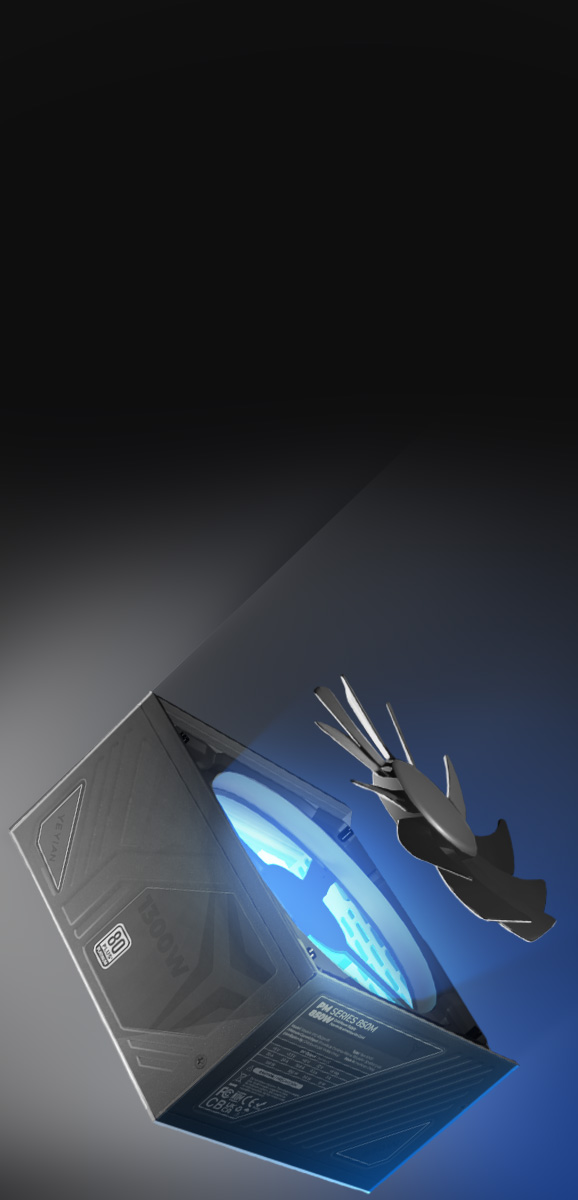

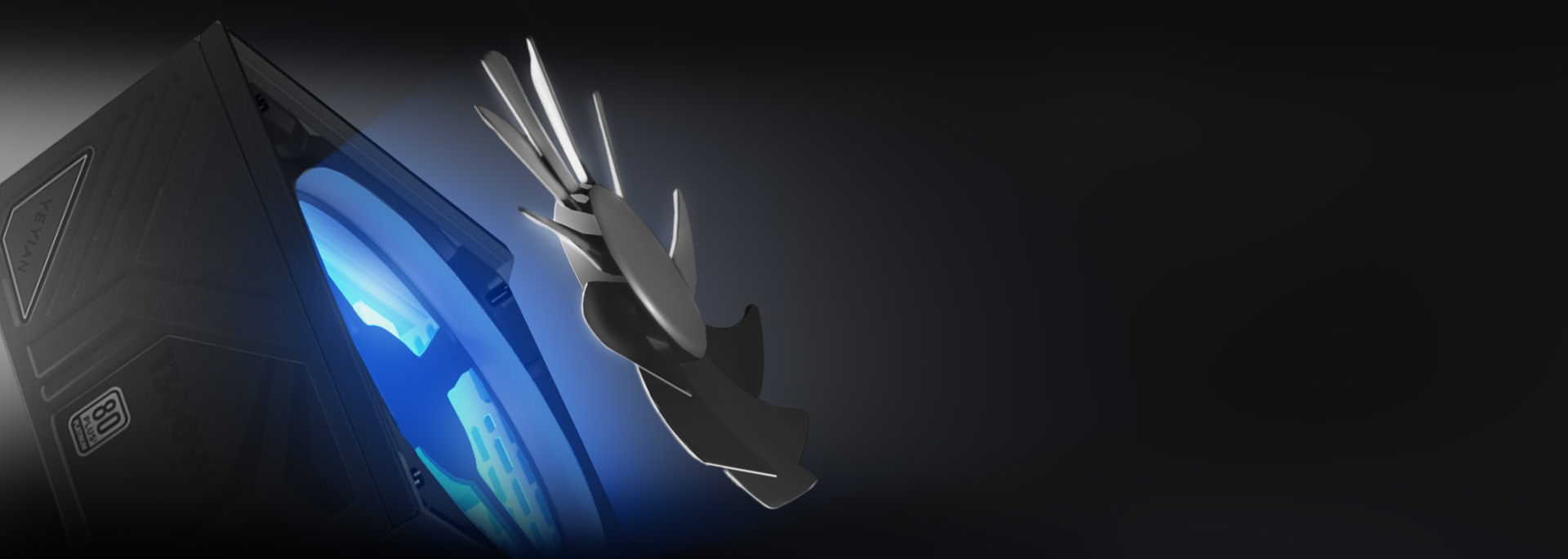

Maximize system stability with our ultra-efficient 80+ Platinum-certified system. The 135mm FDB fan remains near silent under load, and the Fan Delay design provides continued cooling even after shutdown — ideal for long sessions and high ambient temperatures.
Ready for Any GPU

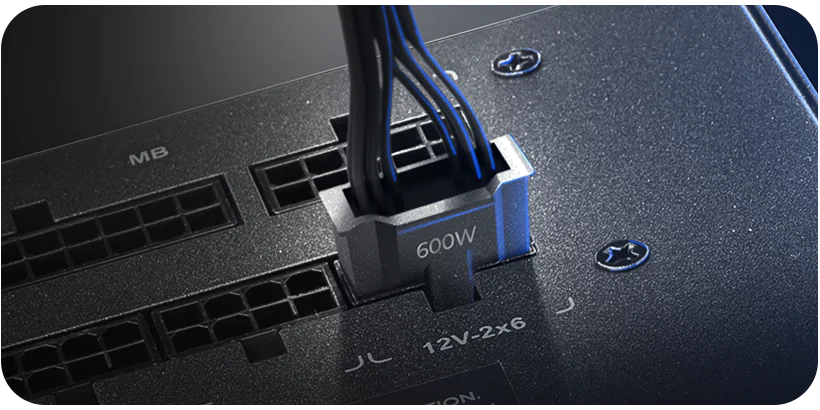

The native PCIe 5.1 (600W) 12VHPWR connector powers the latest GPUs without bulky adapters. Get clean power, stable voltage, and no risk of underpowering your GPU during intense sessions.
Modular Setup, Maximum Flexibility

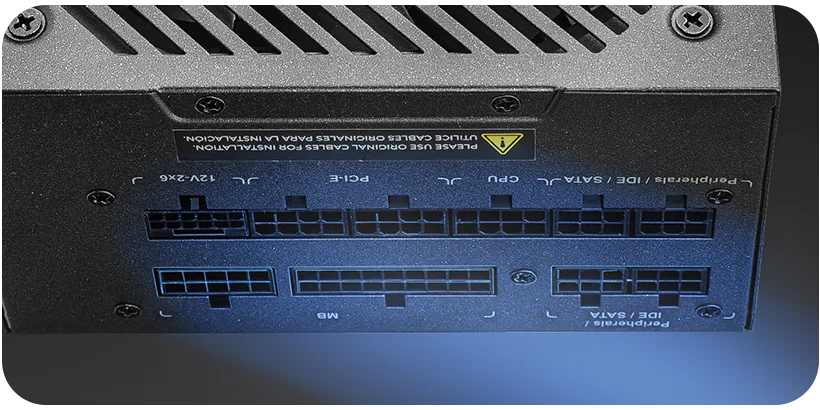

Designed for flexibility, this PSU supports multiple connector types including ATX, EPS, PCIe 6+2, PCIe 5.1, SATA, and Molex. Build your setup with exactly what you need for optimized airflow and upgrade readiness.
Industrial-Grade Build Quality
Equipped with premium Japanese capacitors, this PSU guarantees stable voltage, clean delivery, and long-term resilience. Engineered for creators, gamers, and anyone pushing their system to the edge.
Built-In Peace of Mind
Armed with 8 layers of protective circuitry—including OVP, SCP, and OTP—this PSU actively guards your build from electrical faults and thermal surges. Plus, it’s rated to deliver full 1300W even at 50°C ambient temperatures, giving you confidence in any environment.
| Modular Type | Fully Modular |
|---|---|
| Continuous Power | 1300W |
| ATX Standard | ATX 3.1 |
| Efficiency Level | 80 plus Platinum |
| PFC | Active PFC |
| Capacitor | All Japanese Capacitors |
| Input voltage | Full Range (100V-240V) |
| Protection | OVP, SCP, OPP, UVP, OTP,OCP, SIP, NLO |
| DC to DC | Yes |
| AMB | Capable of full wattage output at an ambient temperature of 50℃ |
| Fan size/Fan Speed | 13.5cm /2200RPM |
| Fan Bearing Type | Fluid Dynamic Bearing (FDB) |
| Fan Delay | Yes |
| Combined Power | 120W |
| Current | 24A |
| Total Regulation | +12V ±5%；5V/3.3V ±5%； -12V ±10%；5VSB ±5% |
| Cable List | ATX 24 PIN x1 (23.6‘’) EPS 4 + 4PIN x2 (27.5‘’ & 27.5” + 5.9”) PCI-E 6 + 2 x4 (27.5‘’ & 27.5” + 5.9”) PCI-E 5.1 (600W) x1 (23.6‘’) SATA x4 (21.6‘’+5.9‘’+5.9‘’) MOLEX x1 (21.6‘’+5.9‘’+5.9‘’+5.9‘’) |
| Color | Dark Gray |
| Material | Metal |
| Dimensions | 150*150*86mm/5.9*5.9*3.39in |
| Net. Weight | 3.06kg/6.75lb |
| User's Manual | Yes |
| Warranty | 10 Years US|MX|ES |
