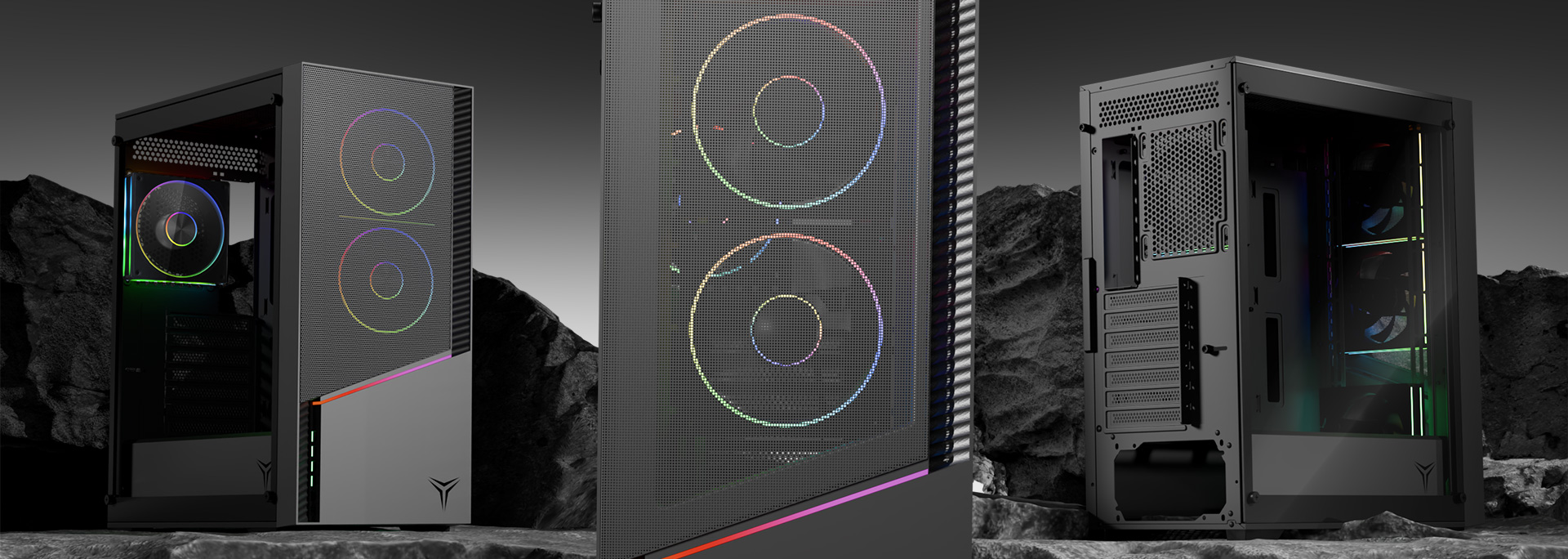

Elara, Mid-Tower ATX, M-ATX, ITX
Total Compatibility & Smart Layout

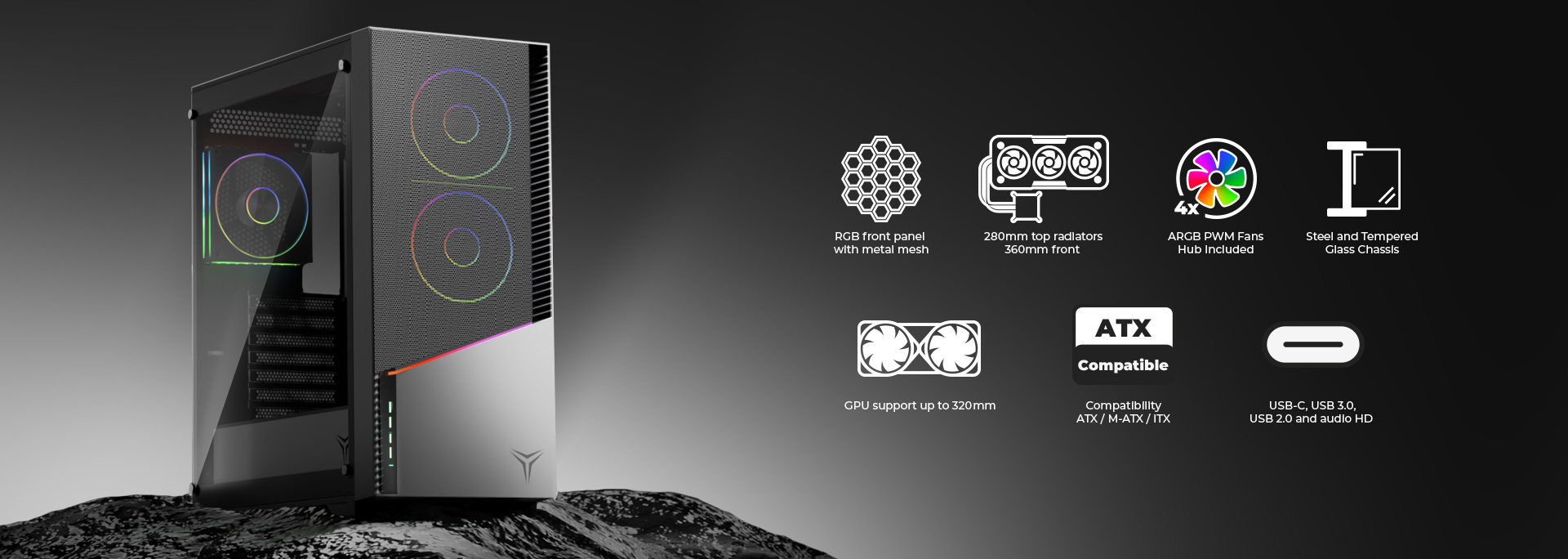

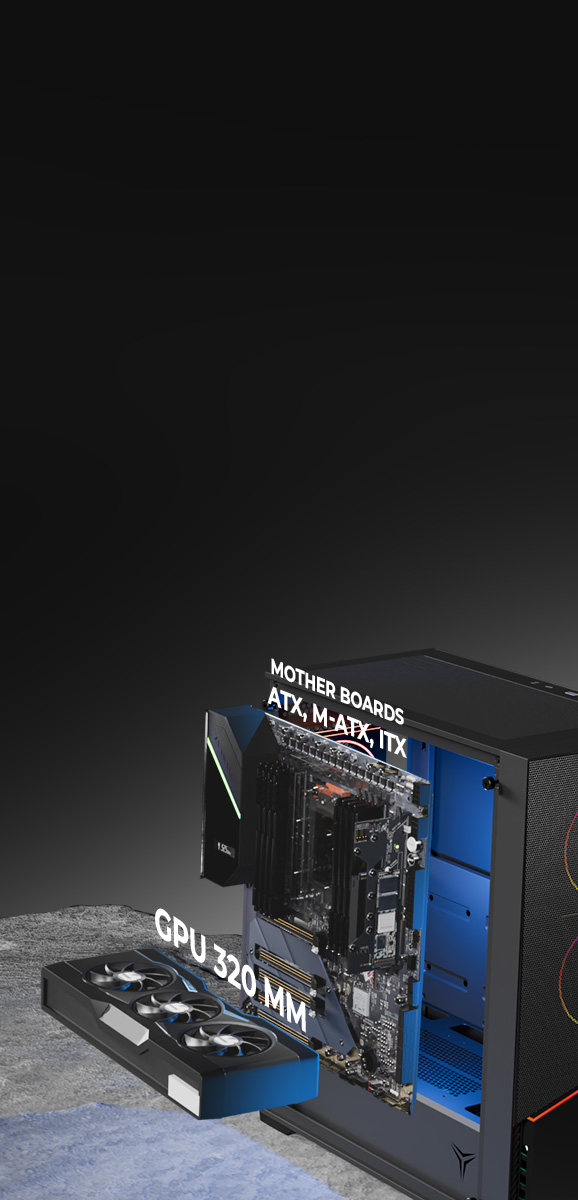

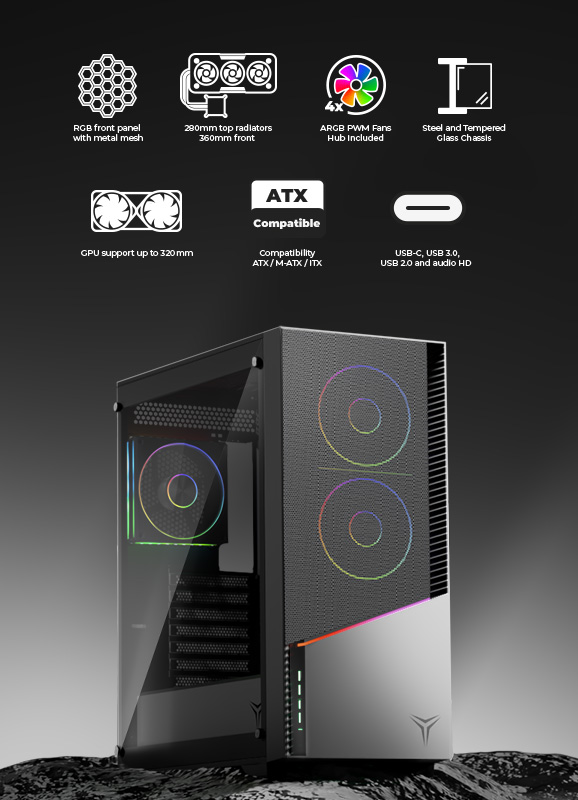

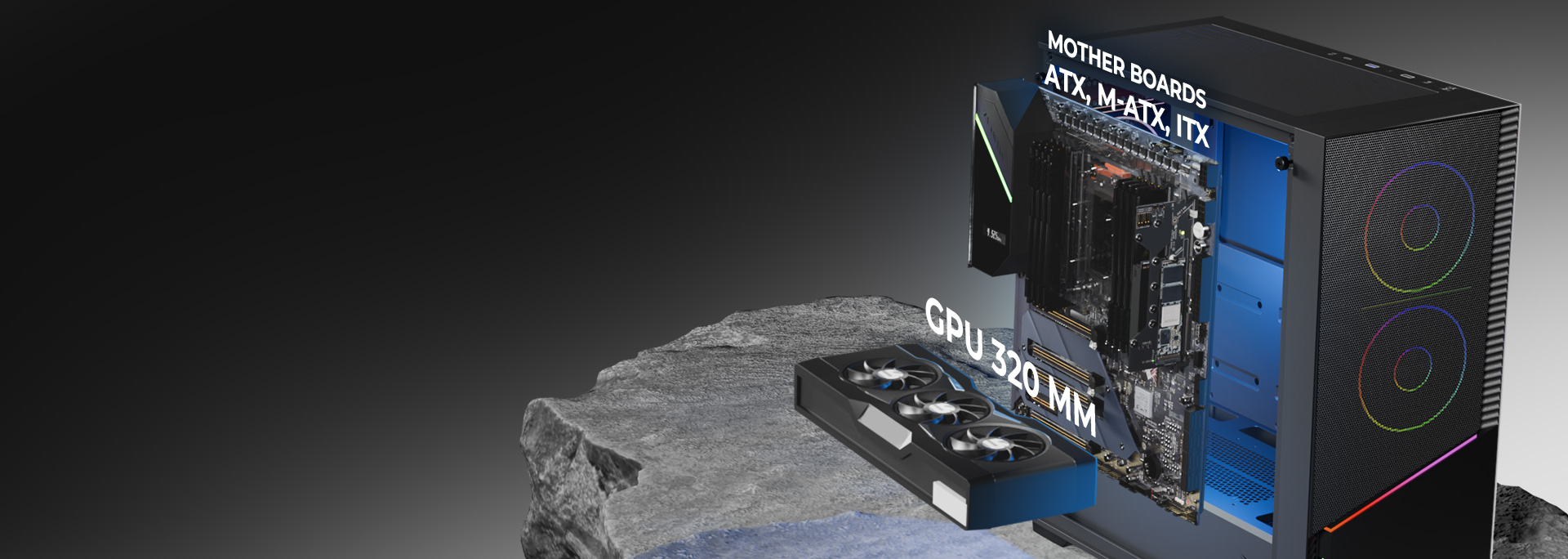

Supports ATX, Micro-ATX, and Mini-ITX motherboards, plus GPUs up to 360mm and CPU coolers up to 165mm. Modular drive bays (2x 2.5", 1x 3.5", and 1x combo) allow easy customization and upgrades, while the rear cable space supports clean internal management.
Made for Liquid—Flexible and Future-Ready

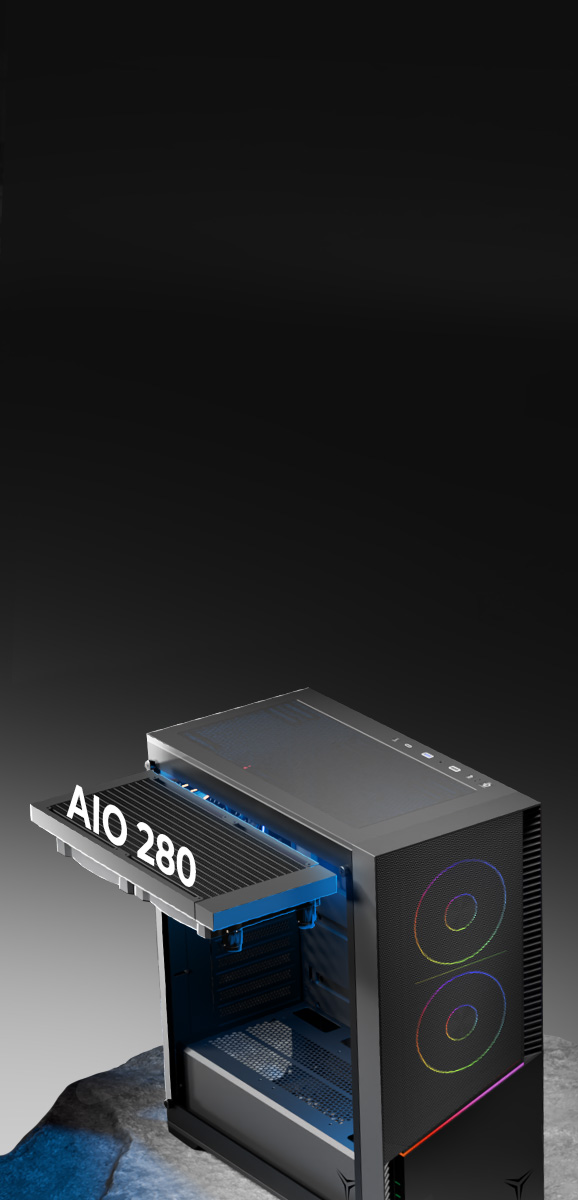

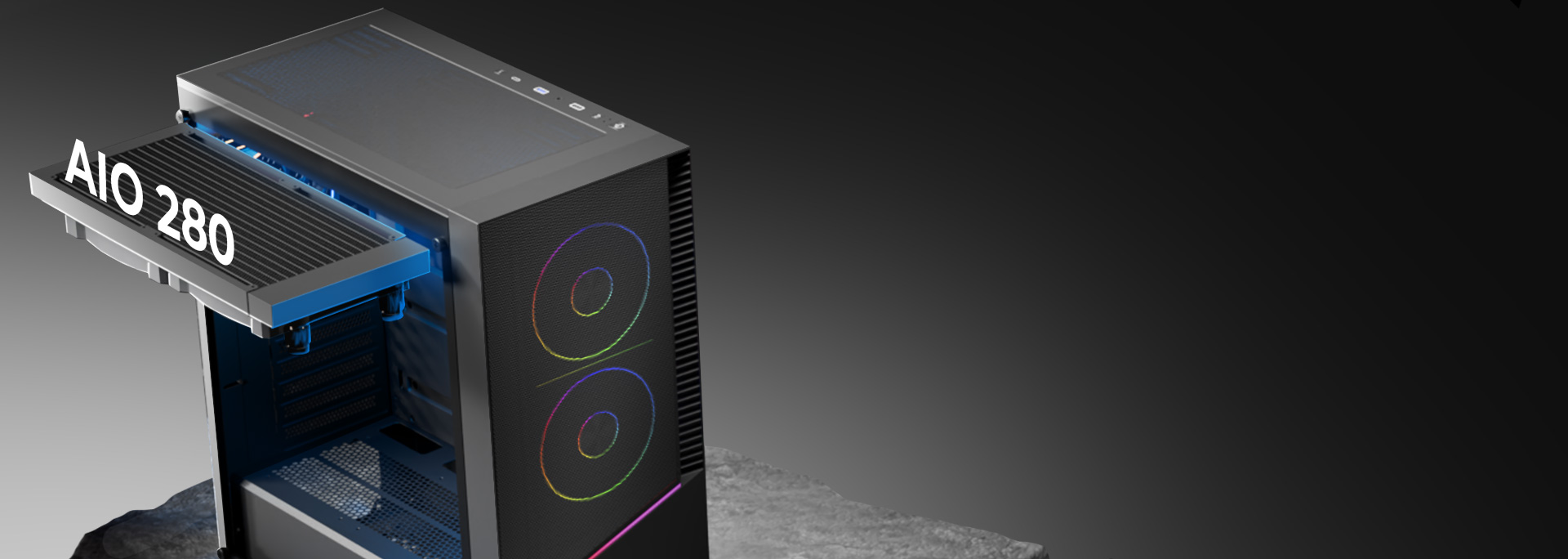

Whether you’re running an AIO or a full-loop liquid setup, Elara supports up to 360mm front and 280mm top radiators. That’s not just compatibility.
It’s optimization for long gaming hours, rendering, or even AI workloads. Combine this with clean cable routing and space for ATX3.0 PSUs, and you’ve got a build that balances power, silence, and future upgrade paths.
ARGB Control Out of the Box

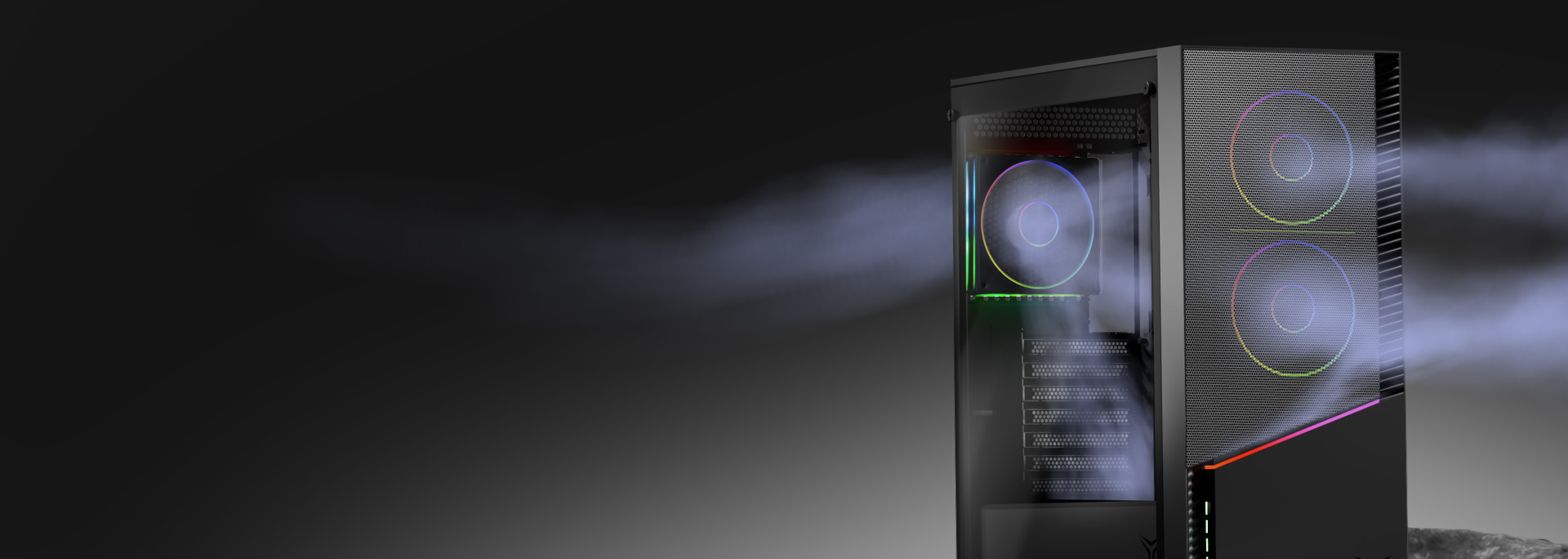

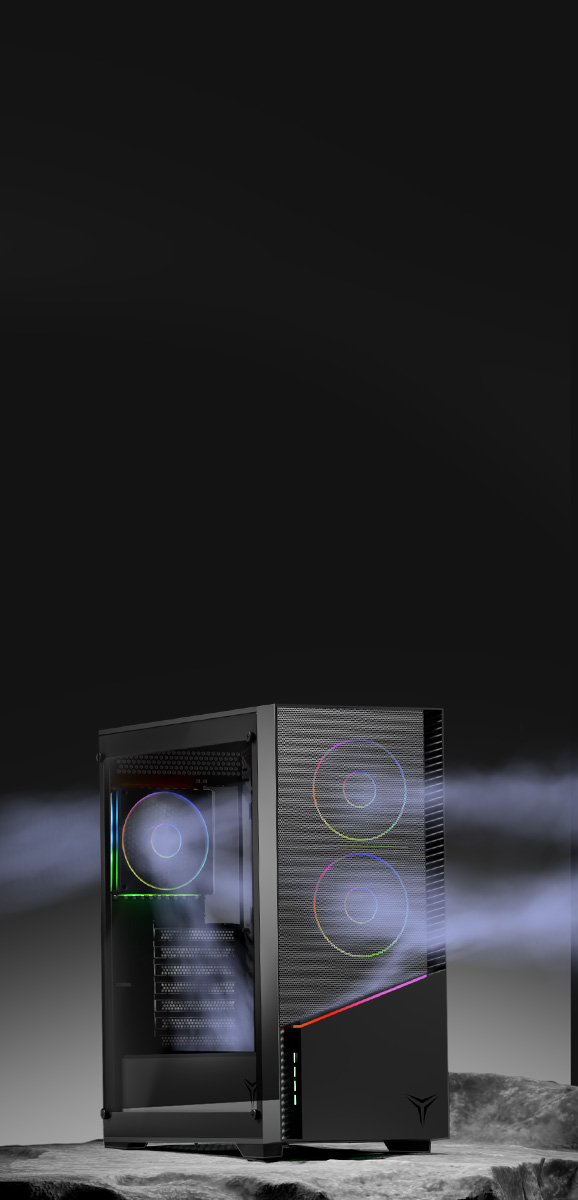

With 4 pre-installed ARGB PWM fans and a built-in fan hub, Elara is lighting- and cooling-ready. PWM control means smart fan speeds based on heat load, while ARGB sync delivers customizable aesthetics. From build to boot, everything works immediately—no extra hardware needed.
Built for Gamers Who Push Limits

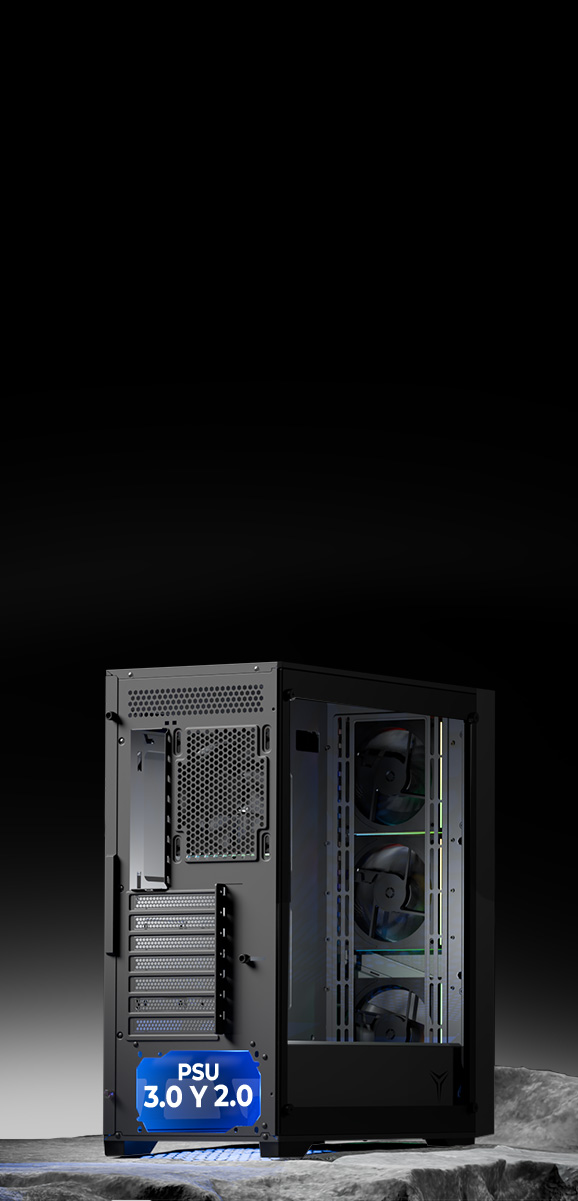

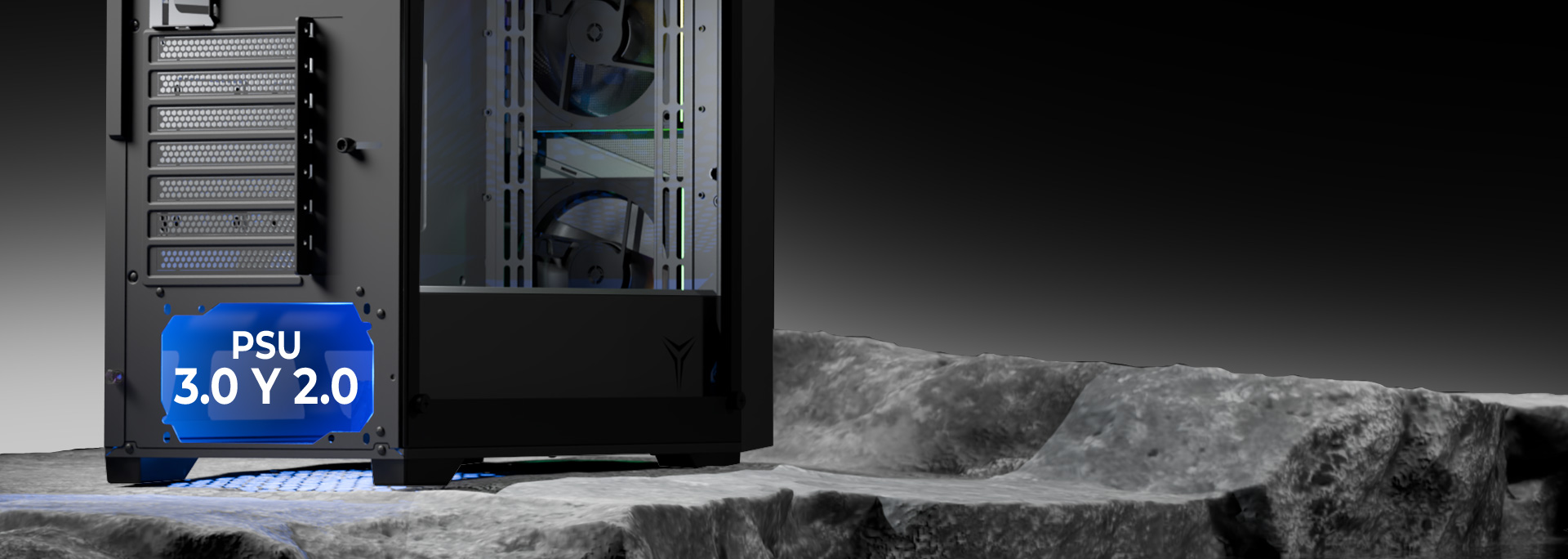

With 7 expansion slots and a PSU-ready base that supports ATX2.0 and 3.0, Elara is ready for overclockers, tinkerers, and power users. Its steel chassis (0.6mm) resists warping under pressure, while tempered glass lets you show off every high-end detail.
| Form factor | ATX Mid Tower |
|---|---|
| Max CPU Cooler Height | UP to 165 mm |
| Max VGA card length | Up to 330 mm VGA card |
| Drive Bays | 2x 2.5" Bay | 1x 3.5" Bay | 1x 2.5"/3.5" Combo Bay |
| Expansion Slots | 7 |
| Power Supply | Supports ATX2.0/3.0 Power Supply |
| Motherboard Compatibility | ATX | M-ATX | ITX |
| Liquid Cooling | 360mm at the front | 280mm on the top |
| Fan | Up to 8 Fans (ARGB Fan with PWM x 4 included) |
| Front Fan Ports | 3 x120mm or 2x 140mm Fan ports at the front (3x 120mm ARGB fan included) |
| Top Fan Ports | 2x 120mm or 2x 140mm Fan ports on the top |
| Rear Fan Ports | 1x 120mm Fan port in the rear (1x 120mm ARGB fan included) |
| Power Supply Shroud | 2x120mm fan ports on the Power Supply Shroud (Optional) |
| Power Button | 1 |
| LED switch | LED Button |
| Audio | HD Audio |
| USB Type A | USB 3.0 Gen 1 x 1 | USB 2.0 Gen 1 x 1 |
| USB Type C | USB 3.0 Gen 1 x 1 |
| Dimensions | 408 x 210 x 485mm | 16.06 x 8.27 x 19.09 in |
| Weight | 6.30kg/ 13.89lb |
| Product color | Black |
| Material | High-quality tempered glass |
| User's Manual | Yes |
| Warranty | US 12 | MX 12 | ES 24 |
| User Manual | Si |
| Garantía | US 12 | MX 12 | ES 24 |
