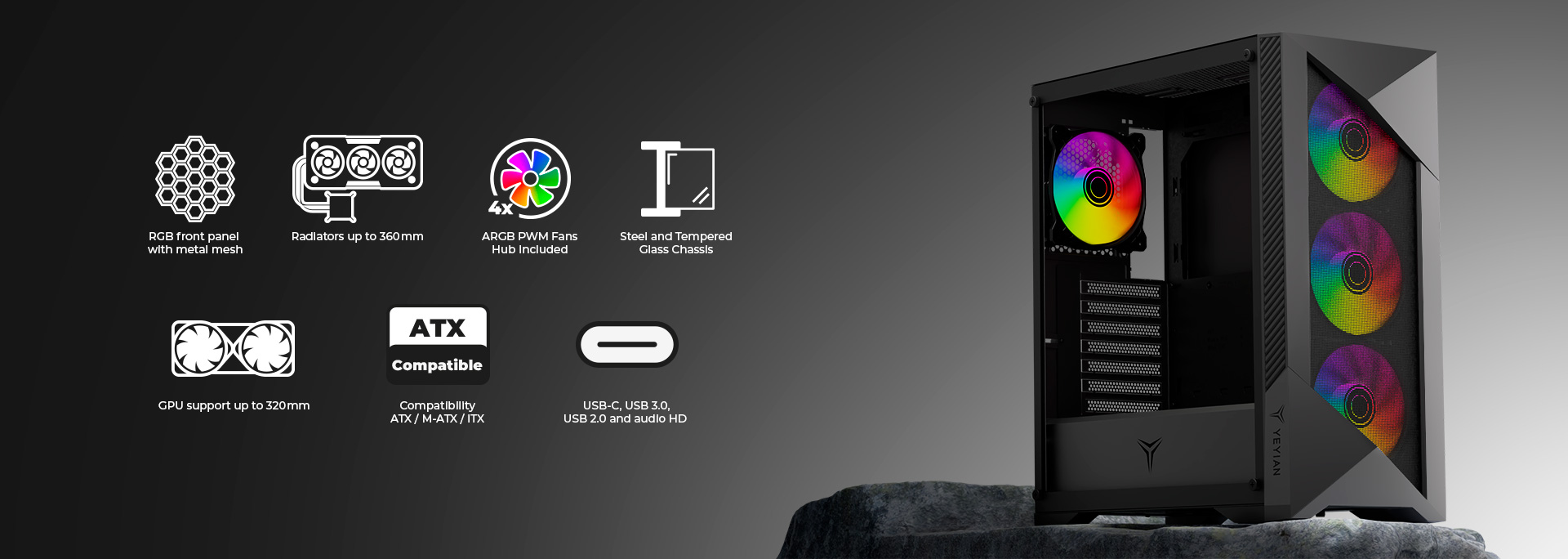

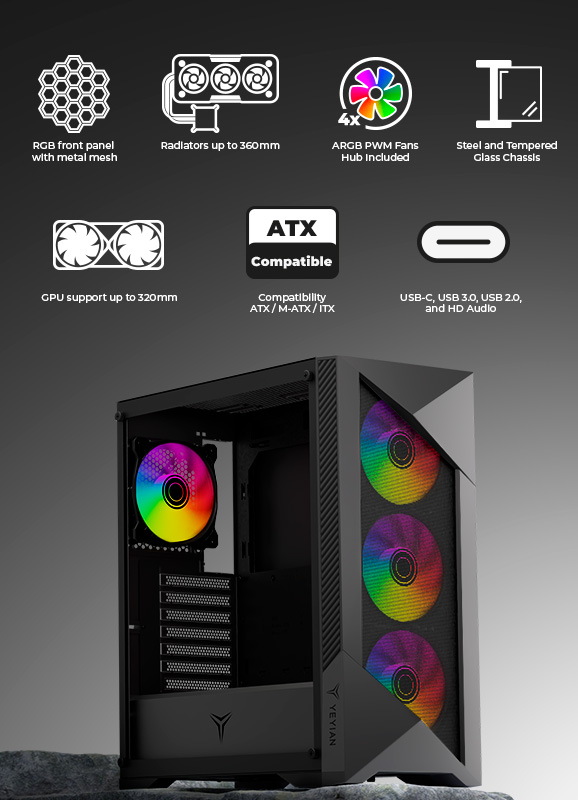

Edge - Mid-Tower - ATX,M-ATX, ITX
Designed for All Users

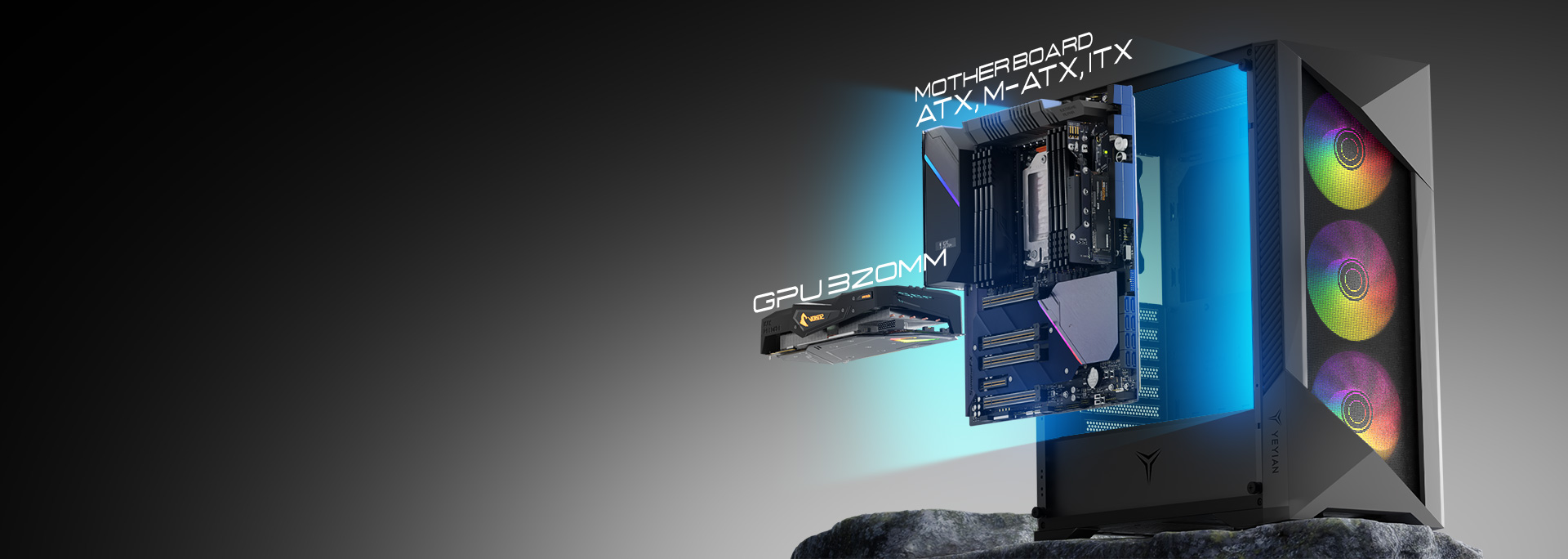

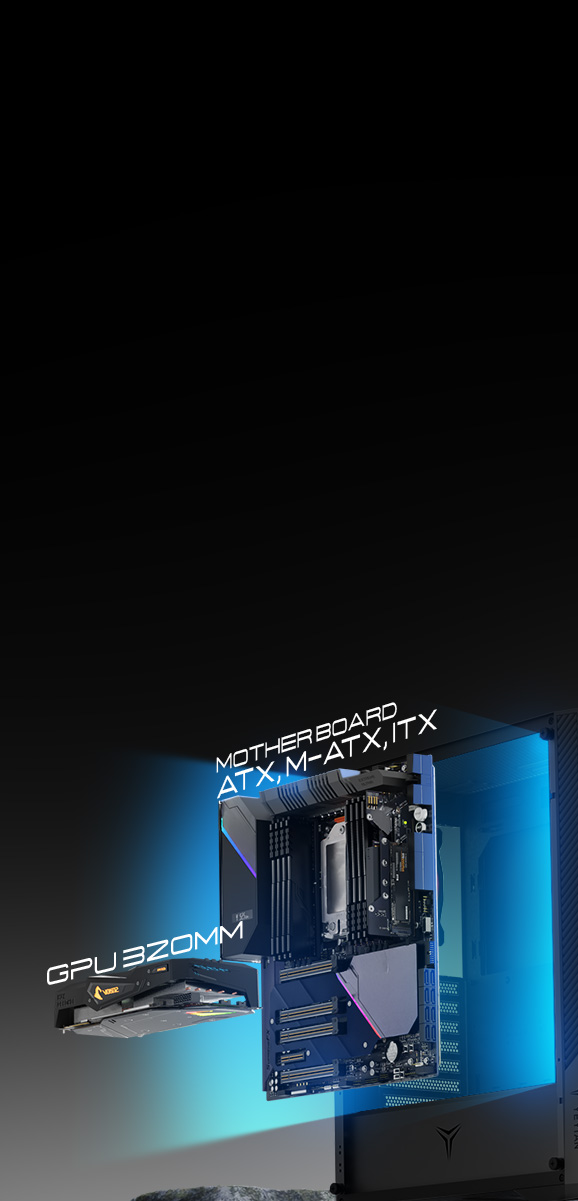

Mounting support for ATX, M-ATX, and ITX motherboards, and GPUs up to 320 mm. Tool-less drive bays, storage space, and cable management channels. Build and upgrade with ease. Perfect for gamers, streamers, and content creators.

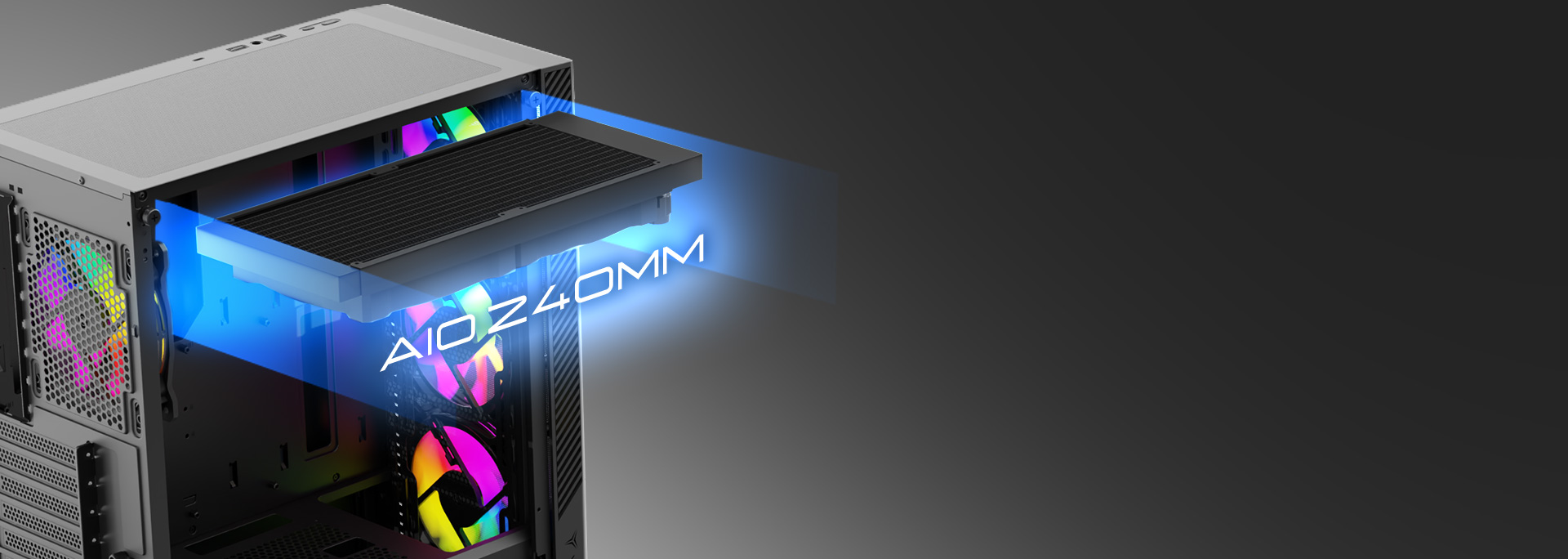

Cooling Freedom, Your Way

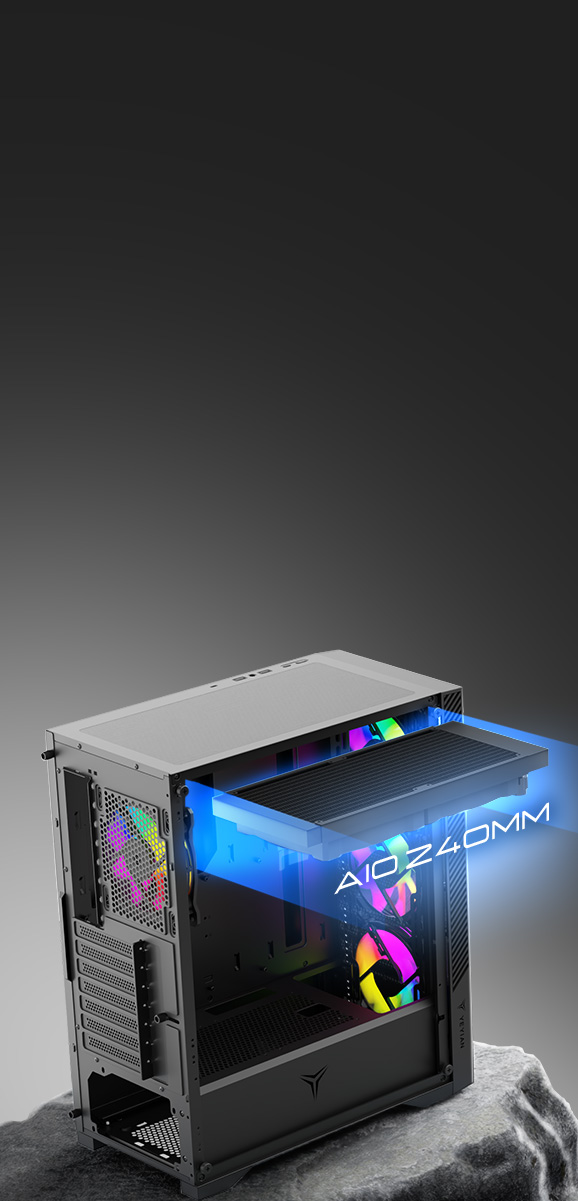

Supports liquid cooling radiators up to 360mm in the front and 240mm on top. Whether you opt for a custom loop or an AIO cooler, the Edge gives you the space and compatibility you need. Combine this with support for up to 8 fans and PWM control via hub, and you’ve got a thermally optimized chassis designed for serious performance.

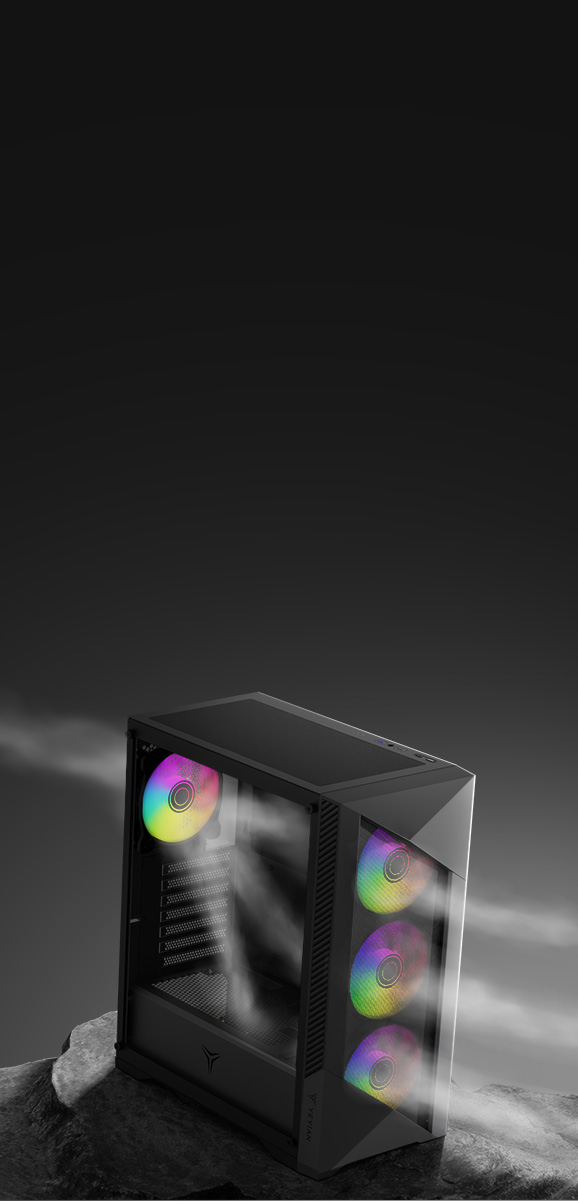

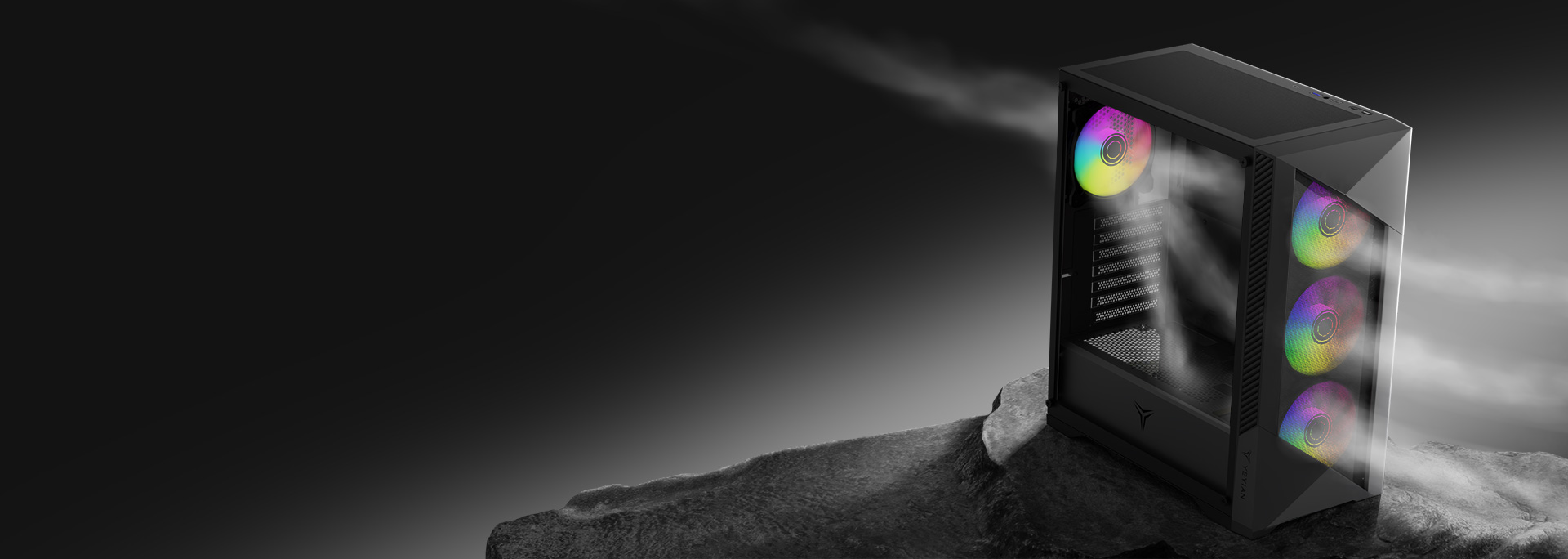

Built to Breathe: Ultimate Airflow

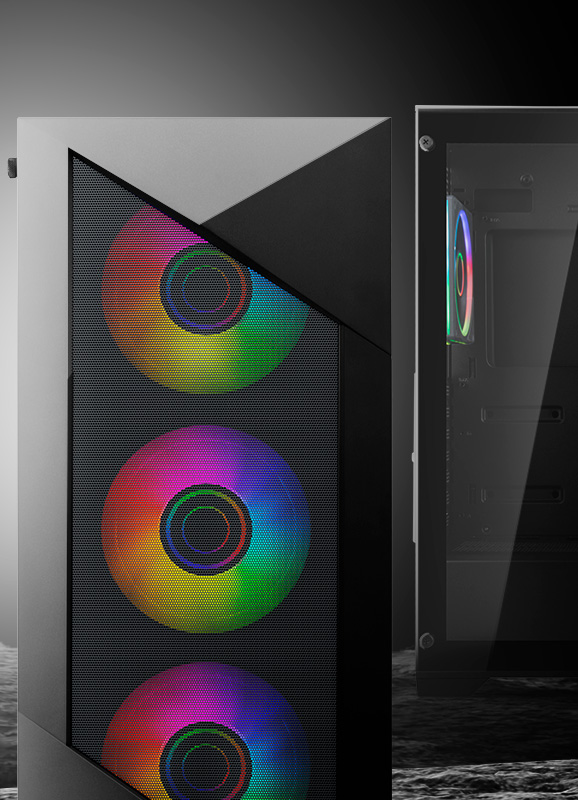

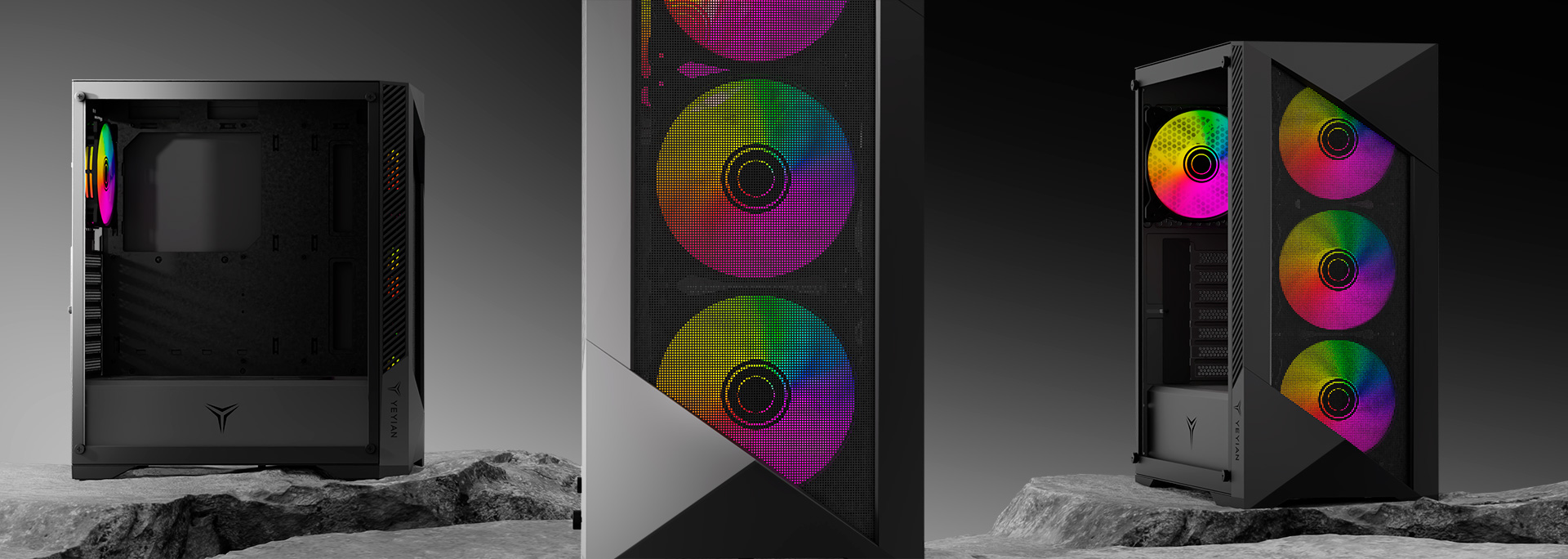

The Yeyian Edge stands out with a bold slash-style mesh front panel that isn’t just for looks; it’s designed to maximize airflow from the start. Combined with the three front-mounted ARGB fans and rear exhaust fan, this case delivers smooth cooling performance out of the box—no additional purchases required. Whether you're gaming, editing, or running intensive simulations, your system stays cool and efficient.
Robust and Ready Build
The reinforced steel chassis provides a solid and reliable foundation. Its design is built to last for years, allowing for upgrades without compromising stability or space. It's a case made to grow with you.
| Form Factor | ATX Mid Tower |
|---|---|
| Motherboard Compatibility | ATX | M-ATX | ITX |
| Fans | Up to 8 Fans (ARGB Fan with PWM x 4 included) |
| VGA Card Length | Up to 320 mm VGA |
| Max CPU Cooler Height | UP to 155 mm |
| Drive Bays | 2x 2.5" Bay | 1x 3.5" Bay | 1x 2.5"/3.5" Combo Bay |
| Expansion Slots | 7 |
| Power Supply | Supports ATX2.0/3.0 Power Supply |
| Liquid Cooling | Supports radiators up to 360mm at the front | Supports radiators up to 240mm on the top |
| Front Fan Ports | 3x120mm or 2x140mm (3x120mm ARGB fans included) |
| Top Fan Ports | 2x120mm or 2x140mm |
| Rear Fan Ports | 1x120mm (1x120mm ARGB fan included) |
| Power Supply Shroud Fan Ports | 2x120mm (Optional) |
| Power Button | 1 |
| LED Switch | Reset Button |
| Audio | HD Audio |
| USB Type A | USB 3.0 Gen 1 x 1 | USB 2.0 Gen 1 x 1 |
| USB Type C | USB 3.0 Gen 1 x 1 |
| Dimensions | 396 x 200 x 456mm/15.6x7.87x17.95in |
| Weight | TBC |
| Product Color | Black |
| Material | High-quality tempered glass |
| User's Manual | Yes |
| Warranty | US 12 | MX 12 | ES 24 |
| Largo máximo de Sistema de Enfriamiento Líquido | Hasta 360 mm frontal | Hasta 240 mm superior |
